FK201 Machine Vision Filter Kit
FK201 Machine Vision Filter Kit

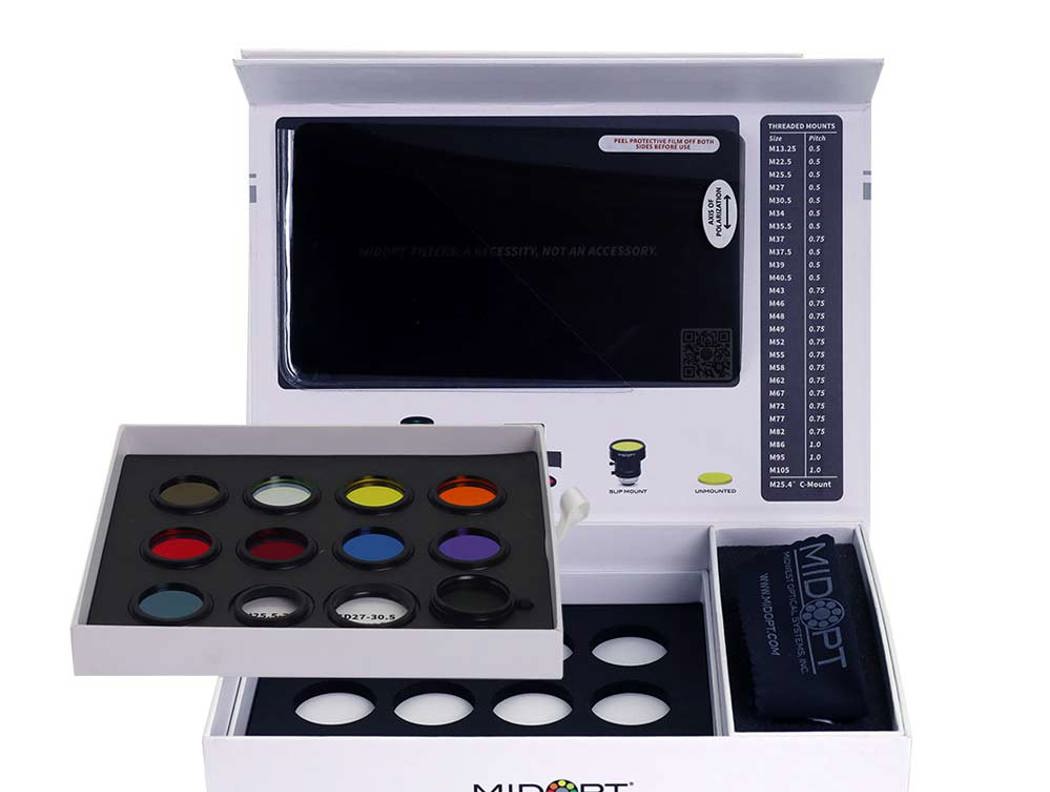

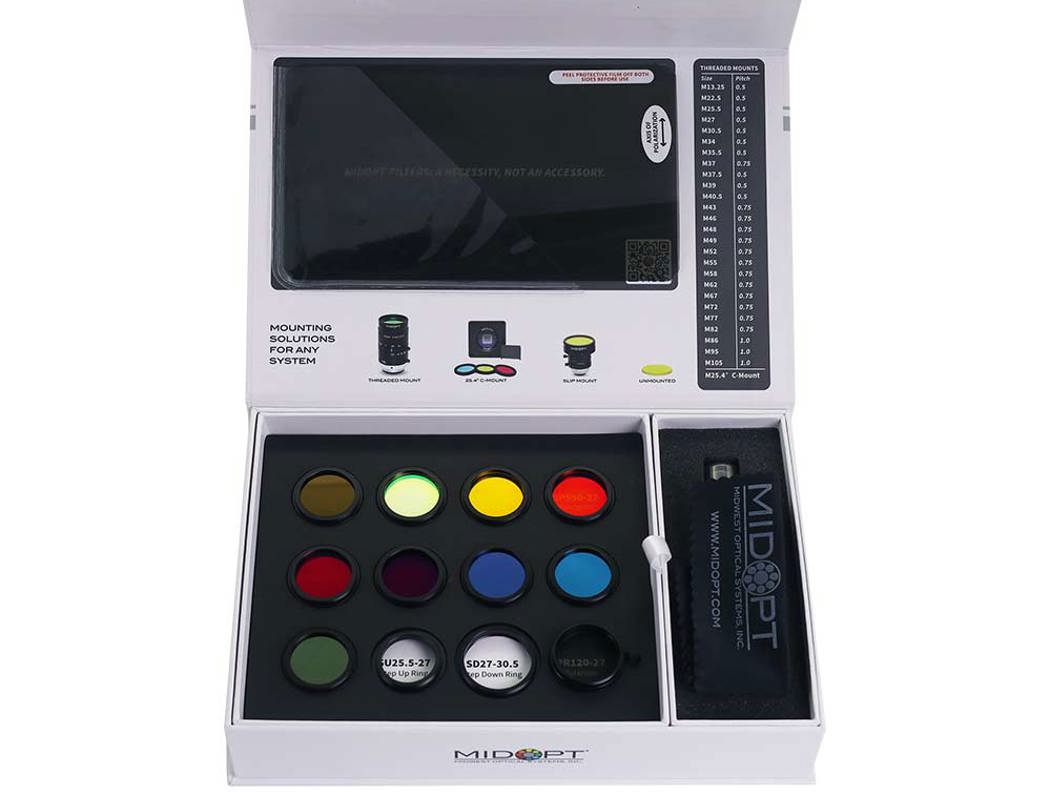

The new FK201 features 10 of the most commonly recommended Machine Vision Filters for testing in the UV (ultraviolet), VIS (visible) and NIR (near-infrared). It includes an enhanced UV filter, three IR filters, a high-contrast linear Polarizer Filter, high-temperature-rated Polarizer Film, Professional Optics Cleaning Solution and storage for additional filters.



This MidOpt Filter Kit allows you to:



  • Test before investing in lighting hardware
  • Control the variability of ambient light
  • Evaluate glare reduction
  • Solve applications quickly



Kit Includes:



  • Ten most recommended UV, VIS and NIR Machine Vision Filters
  • Filters with 27mm threaded mounts
  • Step-up and step-down rings to fit M25.5 and M30.5 lenses
  • Polarizing film for light source
  • Professional Optics Cleaning Solution
  • Microfiber cleaning cloth
  • Compact, impact/static resistant case
  • Soft Foam Filter Storage with extra storage for 12 additional filters



Filters Included:



  • BP340-27 Near-UV Bandpass Filter
  • BP470-27 Blue Bandpass Filter
  • BP525-27 Light Green Bandpass Filter
  • BP590-27 Orange Bandpass Filter
  • BP635-27 Light Red Bandpass Filter
  • BP660-27 Dark Red Bandpass Filter
  • BP735-27 Near-IR Bandpass Filter
  • BP850-27 NIR Bandpass Filter
  • LP920-27 VIS Block Short-Wave Infrared Longpass Filter
  • PR120-27 Ultra High Contrast Linear Polarizer
  • HT008 High Temperature Linear Polarizing Film .008”
  • SU25.5-27 Step-Up Adapter
  • SD30.5-27 Step-Down Adapter

BP Series filters are less susceptible to short-shifting MidOpt StablEDGE® filters are uniquely designed to reduce angular dependency while maintaining a stable, high-transmission passband. Traditional interference bandpass filters are highly sensitive to the angle at which light strikes and usually don’t perform well at wide or shallow angles of incidence.
